VALVES
|
Butterfly Valves
Type: Butterfly valve with
gear operator
Manufacturing
Stanard: API, ANSI, BS, DIN
Pressure: From 1/2"
- 64" (DN15mm DN1600mm)
Pressure: PN0.1MPa
to PN6.4MPa
Aplicable
Temperature: 40 Deg.C - 425 Deg.C
Connection: Wafer,
Flanged
Body Materials: Cast
Iron, Ductile Iron, Aluminium bronze, Carbon Steel, Stainless Steel,
Alloy etc.
Other Types & Sizes
available on demand
|
|
|

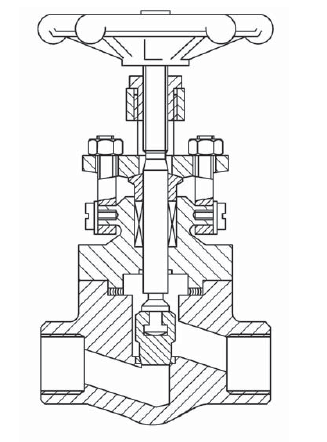

Globe Valves
Type: Globe valve with
gear operator
Manufacturing
Stanard: API, ANSI, BS, DIN
Pressure: From 1/2"
- 24" (DN15mm DN600mm)
Pressure: ANSI Class
125 to 300 (PN6-PN40)
Aplicable
Temperature: 196 Deg.C - 593 Deg.C
Connection: Flanged,
Butt-welded
Body Materials: Grey
Iron, Ductile Iron, Bronze, Stainless Steel, Alloy etc.
Other Types & Sizes
available on demand |
|
|

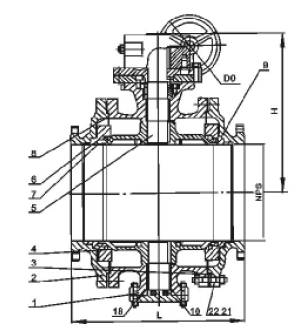

Ball Valves
Type:
- BALL VALVE 2000
WOG WITH LOCKING DEVICE((2-PC) - Manufacturing Standards: ANSI, DIN,
BS; Size Range:1/4"-4" Full Bore & Reduced Bore; Pressure: 2000 PSI
for W.O.G.; Applicable Temperature: 60 - 450 deg. C; Connection: BW;
SW; Threaded: BSPT, BSP, NPT, DIN2999; Body Matrials: STAINLESS
STEELA351 CF8M; A351 CF8
- BALL VALVE 2000
WOG WITH LOCKING DEVICE((2-PC) - Manufacturing Stanandards, ANSI, DIN,
BS; Size Range:1/4"-4" Full Bore & Reduced Bore; Pressure: 2000 PSI
for W.O.G.; Applicable Temperature: 60 - 450 deg. C; Connection: BW;
SW; Threaded: BSPT, BSP, NPT, DIN2999; Body Materials: STAINLESS
STEELA351 CF8M; A351 CF8
- BALL VALVE
(2-Piece Body) - Type: Floating ball, Trunnion mounted ball; Size
Range: From 1/2 inch to 36 inches (DN15mm - DN900mm); Pressure: From
ANSI class 150 to 2500 (PN1.6-42MPa);Applicable Temperature: 196 - 380
deg. C; Connection: Flanged, But-Welded; Body Materials: Carbon steel,
Stainless steel,(WCB, LCB, CF3, CF3M, CF8, CF8M, MONEL...)
-
2-PCS LIGHT DUTY
BALL VALVE WITH LOCKING DEVICE - Manufacturing Standard:
Threaded:BSPT, BSP, NPT, DIN2999; Size Range: 1/4"-3" Full Bore;
Pressure: 1000 PSI for W.O.G.; Applicable Temperature: 60 - 450
deg.C; Connection: Screwed End; Body Material: STAINLESS STEEL A182
F316(CF8M)
Other Types & Sizes
available on demand
|
|
|

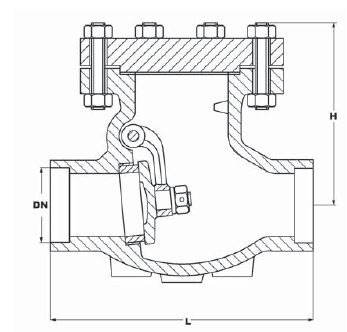

Check Valves
Type:
- Swing Check Valve
(Cast Steel) - Pressure: 1/2" -24" (DN15-DN600mm); ANSI Class 150
to 2500 (PN1.6-PN42); Connection: Flanged, Butt-welded; Manufacturing
Stanard: API, ANSI, BS, DIN
- Cast Iron Check
Valve - 1/2" - 24" (DN15-DN600); ANSI Class 125 to 250 (PN10-PN16) -
Other sizes on Request, Connection: Flanged; Manufacturing Standard:
ANSI, BS, DIN
- Wafer Check Valve
. Pressure: 1/2" -24" (DN15-DN600mm); NSI Class 150 to 2500
(PN1.6-PN42); Connection: Flanged, Butt-welded; Manufacturing
Standard: API, ANSI, BS, DIN
Body Materials:
Carbon Steel, Stainless Steel (A105, 304, 304L, 316, 316L , Alloy
etc.
Other Types & Sizes
available on demand
|
|
|
Plug
Valves
Design: API 5D & API599
Tested: API 5D & API
598
Face to face to API
6D and ANSI B16.10; Flanged Ends to ANSI B6.5; Screwed Ends to ANSI
B1.20.1
Sizes: 1/2" - 12" ;
Class 150-600
Other Types & Sizes
available on demand |
|
FITTINGS ASTM A105 & A182 etc.,
FLANGES
|
Elbows
- Welded and Seamless 45,
90, 180 deg. ANSI B16.11, ANSI B1.20.1, ANSI B16.9 |
 |
| Reducers |
 |
| Collars |
 |
| Stub Ends |
|
|
Tees |
 |
| Unions
|
 |
| Caps |
 |
|
Nipples |
 |
Other Types & Sizes
available on demand
|
